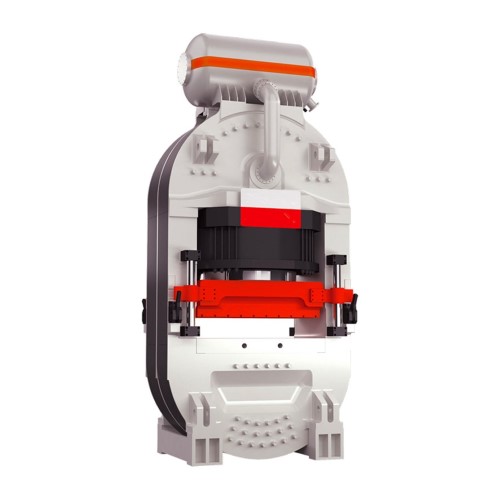

Wire Winding Hydraulic Press

WWHP is mainly used for pressing / forming large thin shell plates such as titanium plates, stainless-steel plates, powder plates and rods. It is widely applied for metal materials cold / hot extrusion, hardware product embossing, laminating, imitation die-casting aluminum pots drawing and extrusion composite forming.


Our WWHP has independent power mechanism and electric control system, adopts centralized control of buttons, and has manual and semi-automatic working modes. Also the working pressure and working speed are adjustable, which makes it a more advanced molding press for heat exchanger plates and sheets.

KEY FEATURES

●  Wire winding structure, high pressure load.

●  High pressure boost and compact structure.

●  Energy storage technology and variable frequency technology, high energy efficiency.

●  PLC control.

●  Multiple safety protection.

●  Hydraulic control check valve.

●  Can be customized according to user’s requirements

TYPICAL USE

WWHP is widely used in the following industries:

●  Metal cold (hot) extrusion, kitchenware pot, clocks, car shell, motorcycle accessories.

●  Metal sheet hydraulic press is used for high-density corrugated shallow drawing and forming of non-metallic plates, such as plate heat exchanger plates, hydrogen electrode plates and silicon carbide plates.

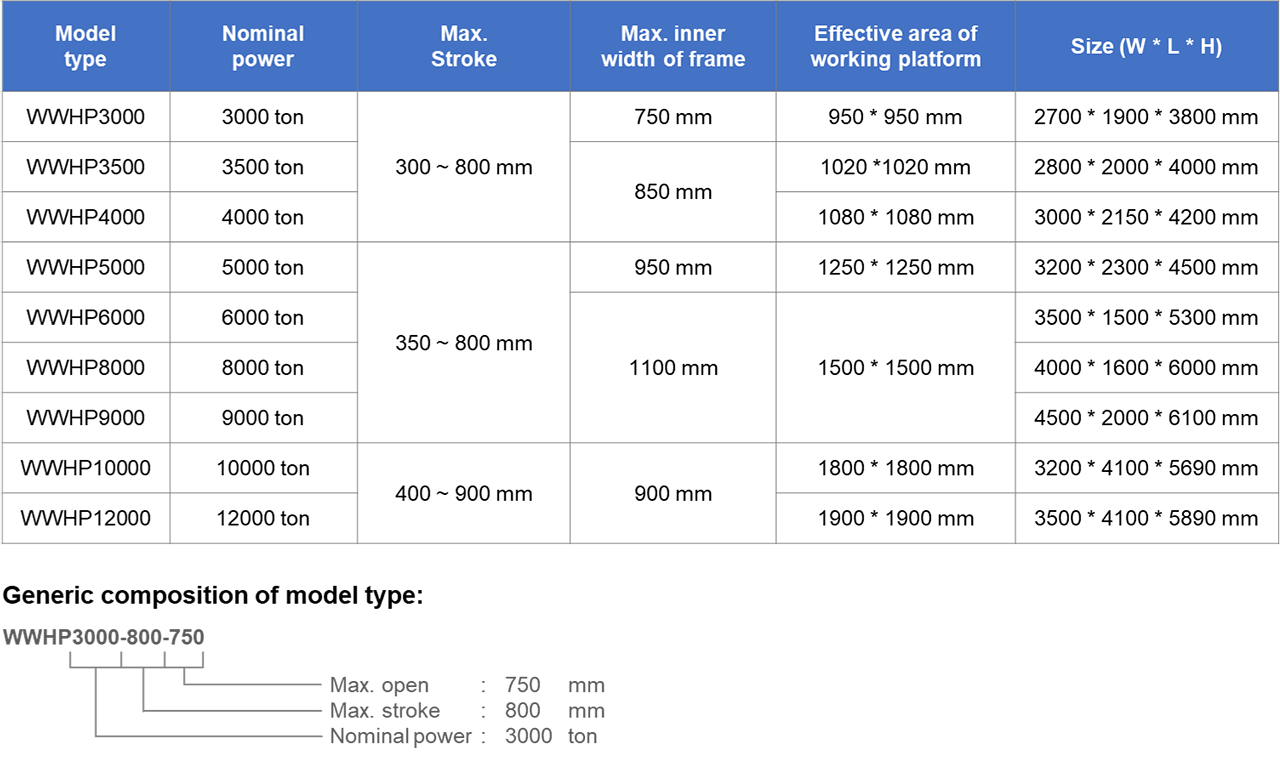

DATASHEET
