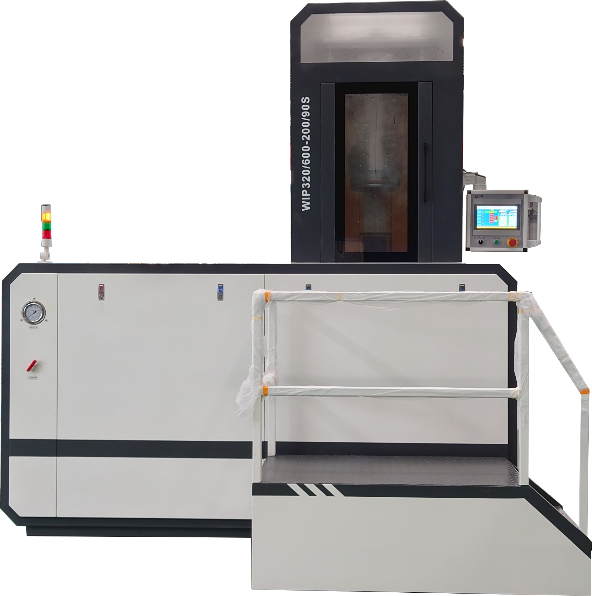

Warm Isostatic Press

WIP is a type of Cold Isostatic Press equipment that comes with heating function. It uses Isostatic technology to make compact body from powder materials by using hot water or oil as a pressure medium. It is often used to eliminate molding deviation of seasonal changes because it keeps the molding powder at constant temperature throughout the year.


The WIP (liquid boost type) was successful developed in 2018 and has been recognized by large MLCC production enterprises such as Guangdong Fenghua Advanced Technology Holding CO., LTD.

KEY FEATURES

●  Pressure up to 600 MPa

●  Temperature up to 200 °C (medium: oil) or 85 °C (medium: water)

●  Medium can be water or oil

●  Inner diameter of cylinder up to 800 mm

●  Inner length of cylinder up to 1500mm

●  Can be customized according to user’s requirements

TYPICAL USE


DATASHEET
